GHI-444

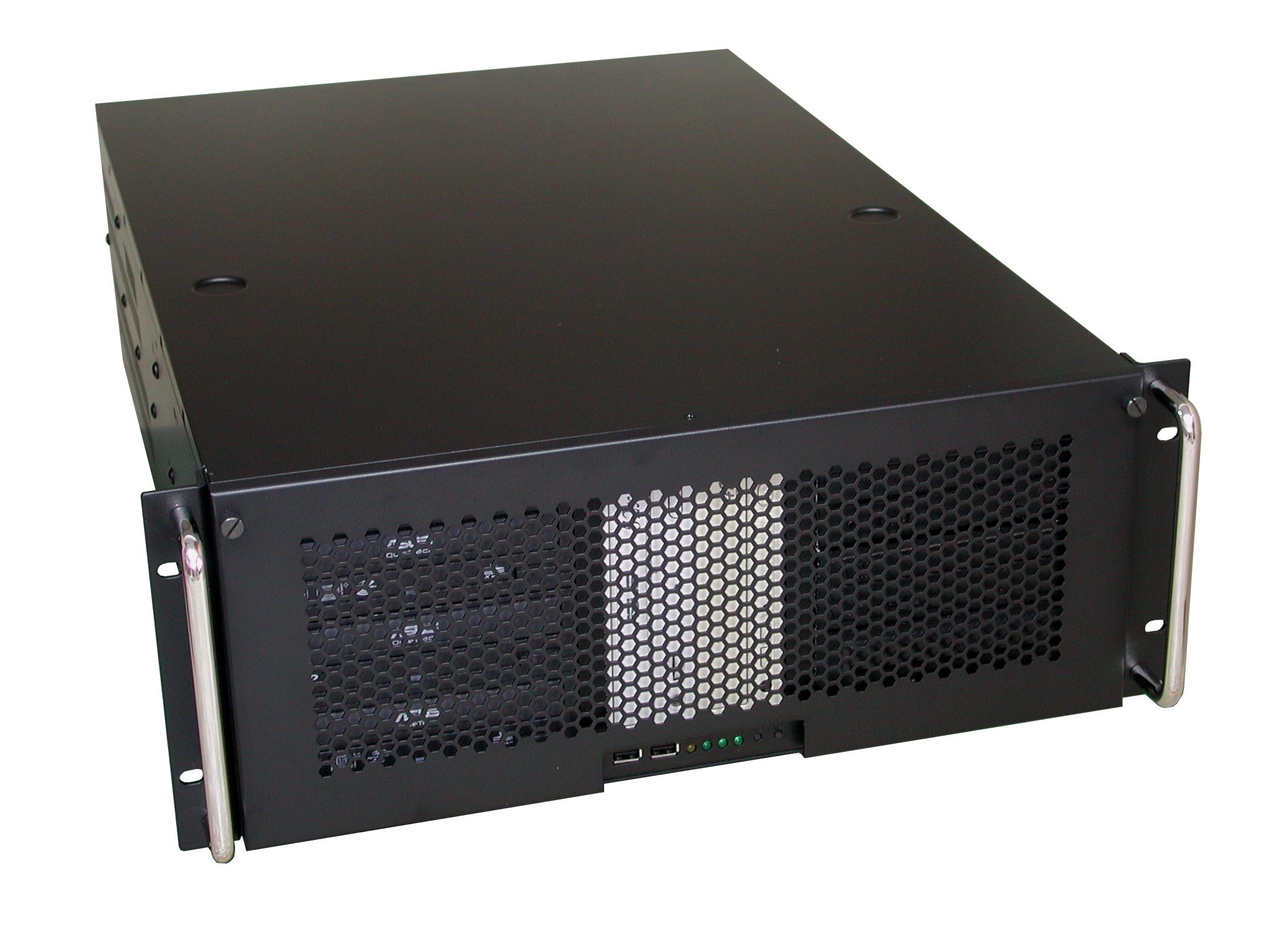

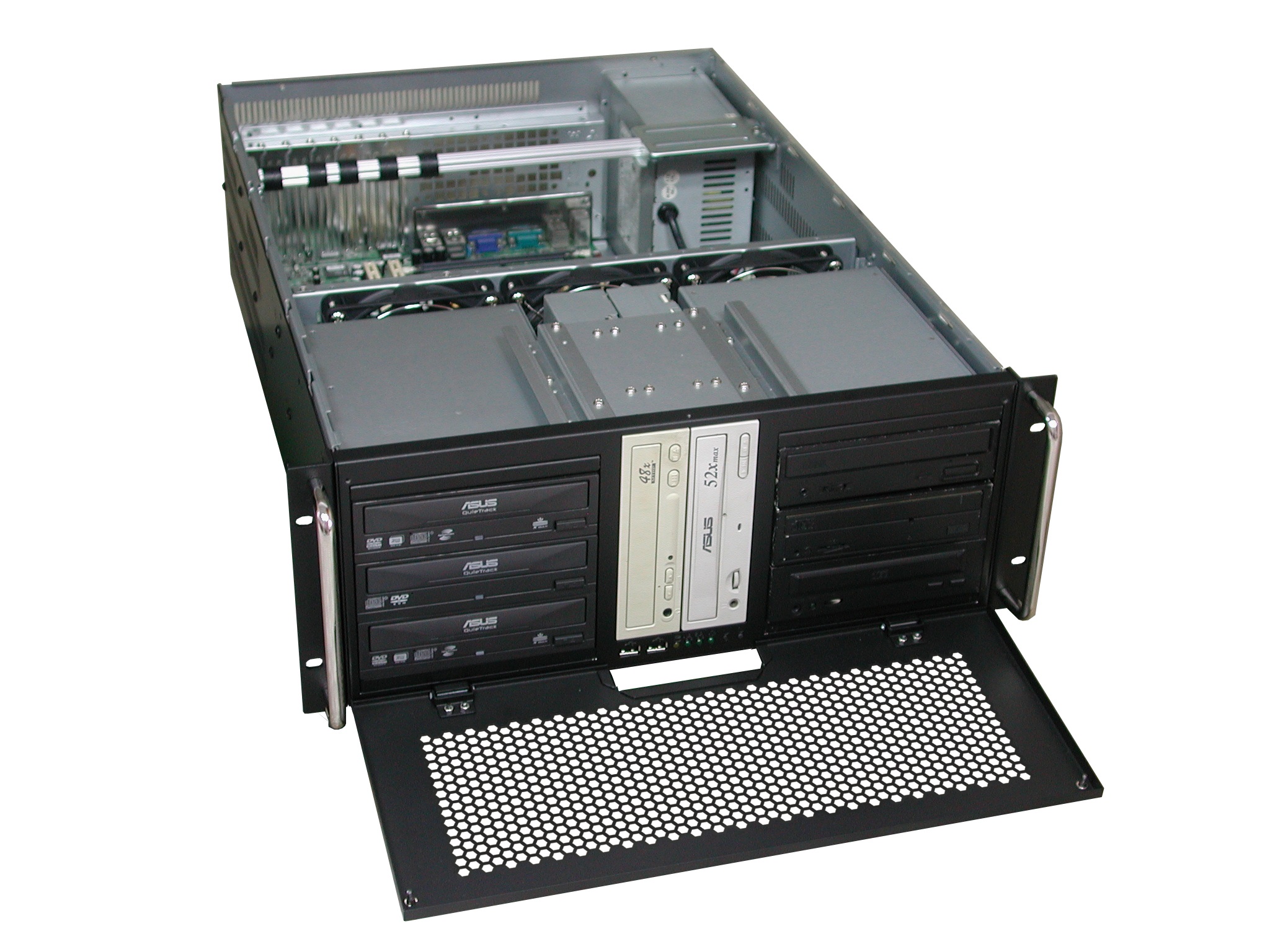

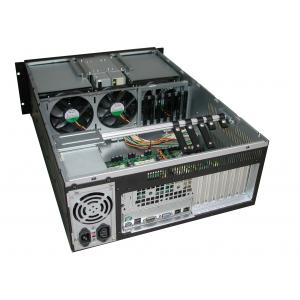

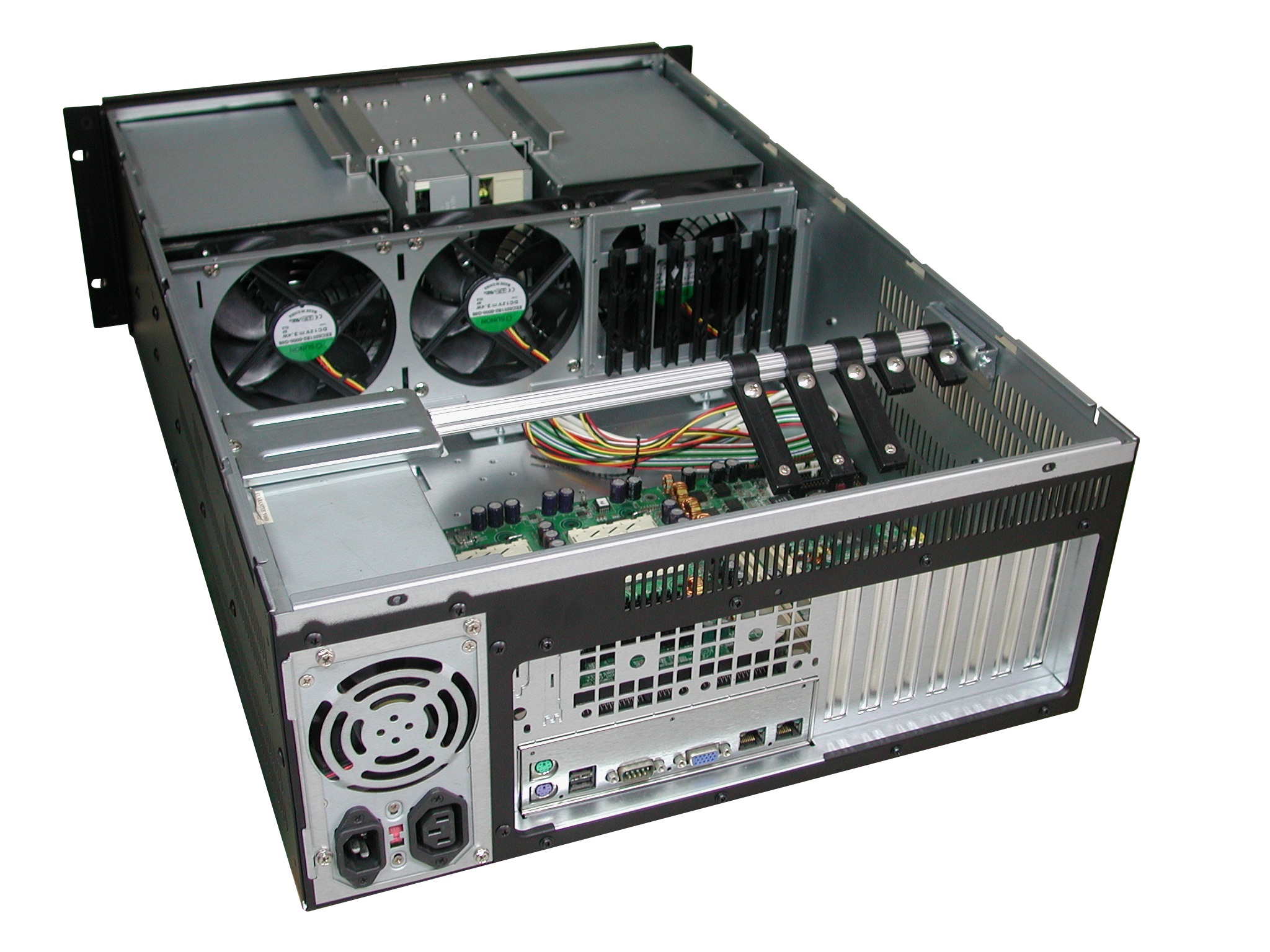

More Product Pictures
Download File

Specifications




Model: GHI-444
Max. Board Size: EATX M/B (Max. to 12" x 13") SSI EEB 3.0
System Board Type: Intel or AMD



  Product Information
Standard: EIA RS-310C 19" Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard), or Custom
Drive Capacity: 8x 5.25" ODD
Power Supply(Optional): PS/2 Size Single or Mini Redundant ATX P/S (Rear Installation) Max. Depth 300mm
Cooling: 3x (120mm = 90.0CFM ea.) Fans & 2x (60mm = 23.5CFM ea.) Fans (Option)
Front Door: Single Door With 2 Thumbscrews (Removeable)
Connector Port (front): 2x USB 2.0 Ports
Indicators: LEDs for Power ON/OFF, HDD Activity, 2x LAN
Switch: Power ON/OFF Momentary (Push button), System Reset
Dimensions(W x H x D): 483 x 177 x 624mm (19.0" x 7.0" x 24.5")
Weight: 20.9 kgs / 46.1 lbs
Cu. ft.: 5.5
Carton Size: 59.0 x 33.1 x 59.1 (23.2" x 13.0" x 31.5")
Humidity: 5% - 95% Non-condensing
Product Applications:



  Optional Accessories
HDD Drive Accessories:
Slide Rails:
Chassis Height: 4U
