GHI-252-ALB/ALU

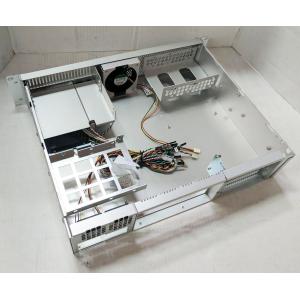

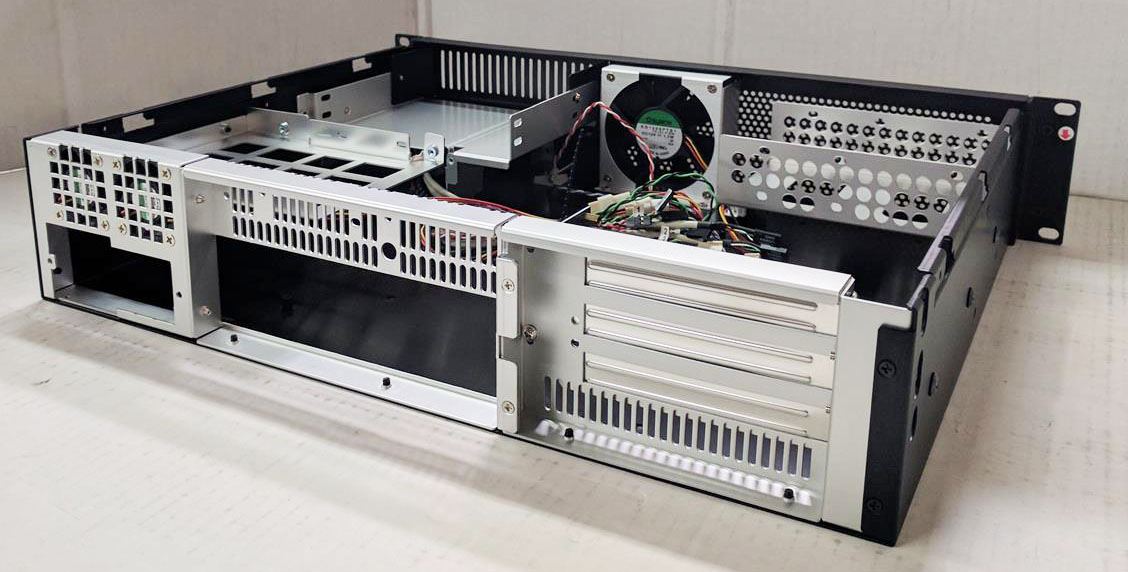

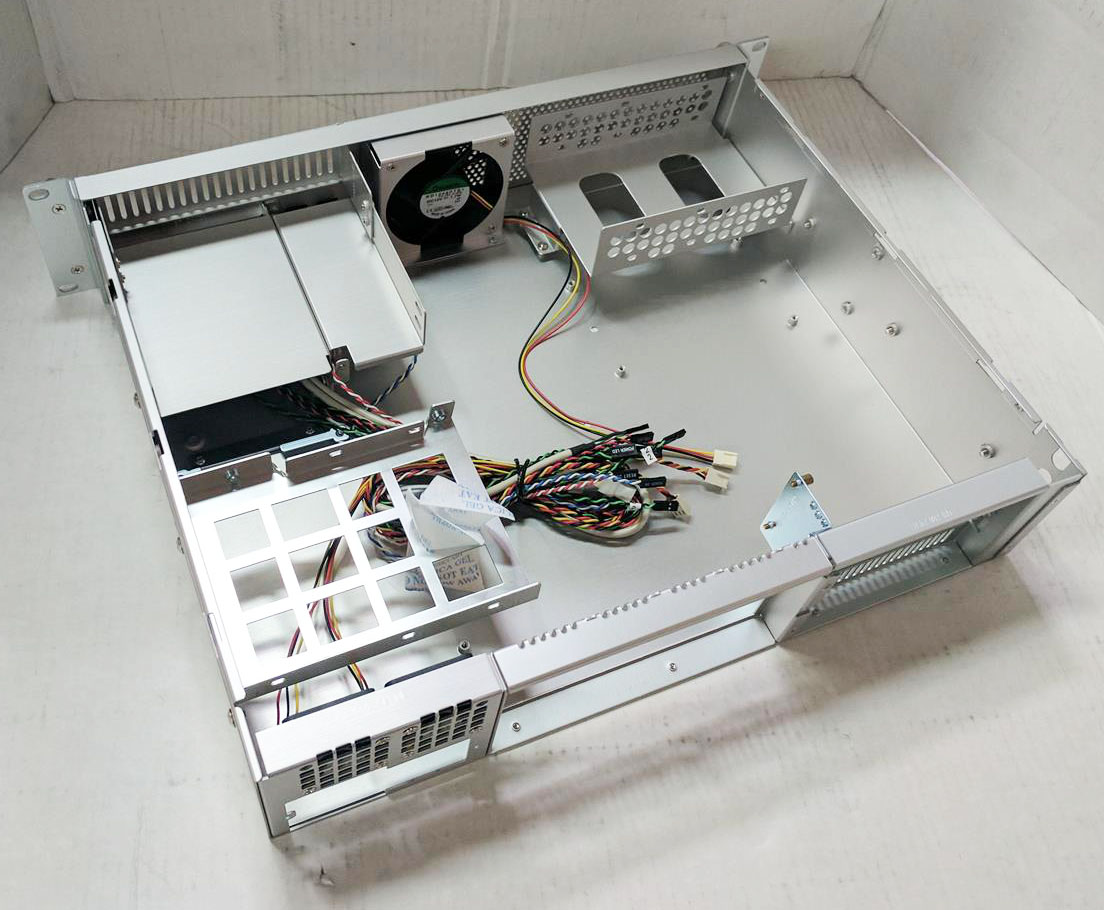

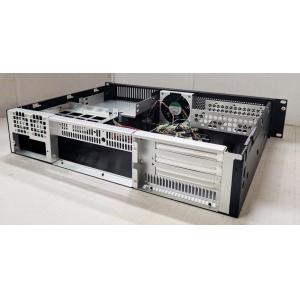

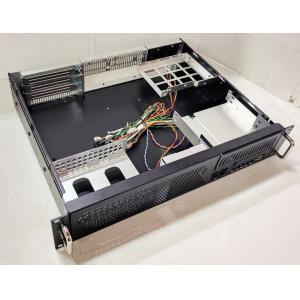

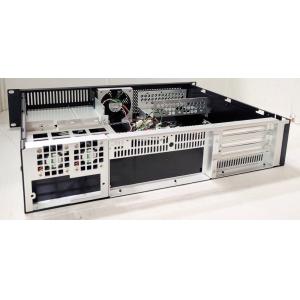

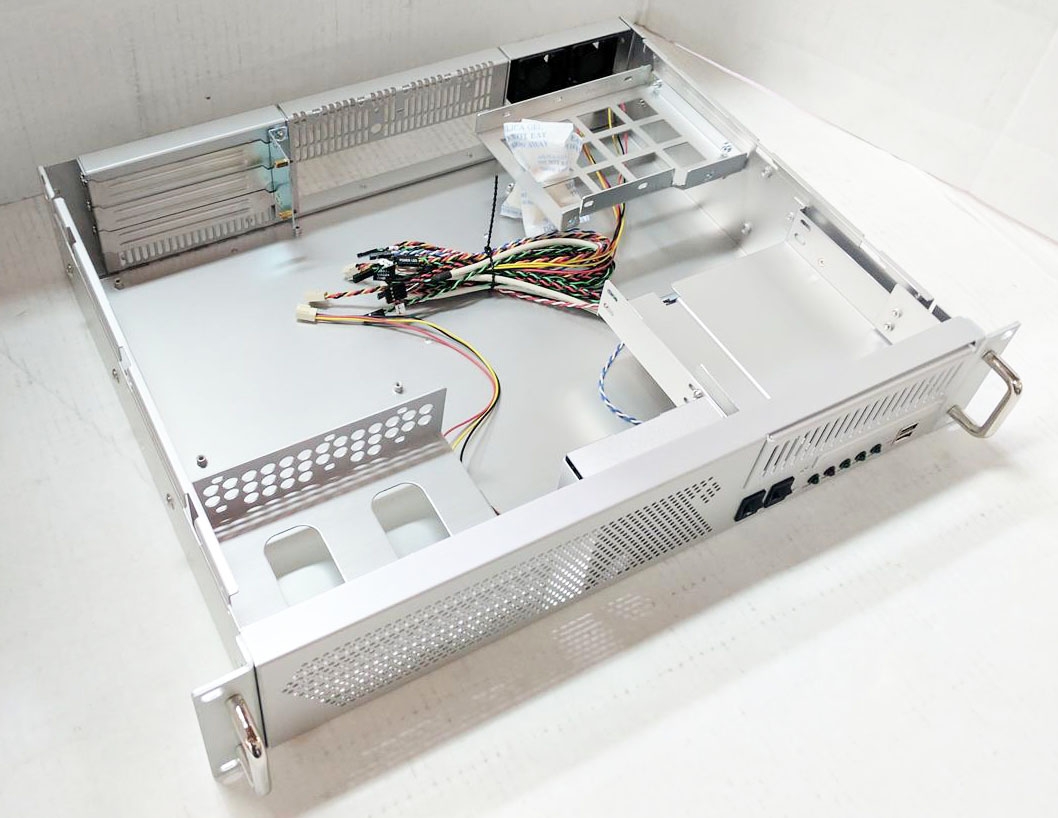

More Product Pictures
Download File

Specifications




Model: GHI-252-ALB/ALU
Max. Board Size: ATX (12" x 9.6")
System Board Type: Core i, Core2Duo, Core2Quad, Pentium, Dual Xeon, AMD 64, Dual Opteron, Athlon



  Product Information
Standard: EIA RS-310C 19" Rackmount Standard
Construction: Light Weight Aluminum Alloy
Color: Anodized Black or Custom
Drive Bays: 1x 5.25" & 1x Slim FDD & 3x 3.5" HDD
Power Supply: 1U Single up to 300W ATX P/S (Rear Installation) Max. Depth 205mm
Cooling Units: 1x (80mm = 42.5CFM ea.) & 2x (40 x 20mm = 7CFM ea) Fans
Expansion Slot: 2 or 3x Horizontal ISA/PCI/AGP Option Slots(GHI-252H) or 7x Low Profile PCI Slots (GHI-252V)
Connector Port (front): 2x USB Ports
Indicators:
Buttons: Power ON/OFF Momentary(Square), System Reset
Crossbar:
Thermal Card: NA
Front Door(s): NA
Air Filter:
Dimensions(W x H x D): 483 x 88 x 357mm (19" x 3.5" x 14.1")
Weight: 2.5 kgs / 5.5 lbs
Cu. ft.: 2
Carton Size: 57 x 20.3 x 50 (22.4" x 8" x 19.7")
Humidity: 5% - 95% Non-condensing
Product Applications:



  Optional Accessories
HDD Drive Accessories:
Slide Rails:
Chassis Height: 2U
