GHI-M25

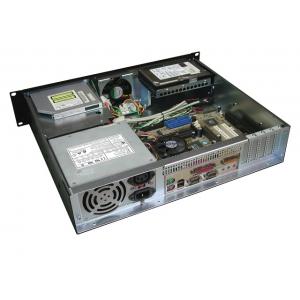

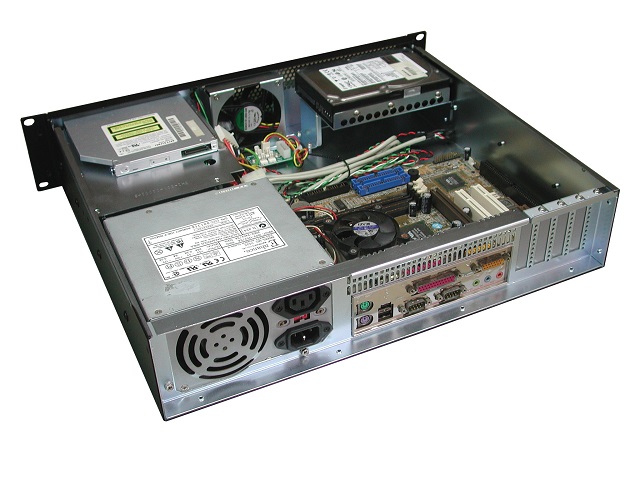

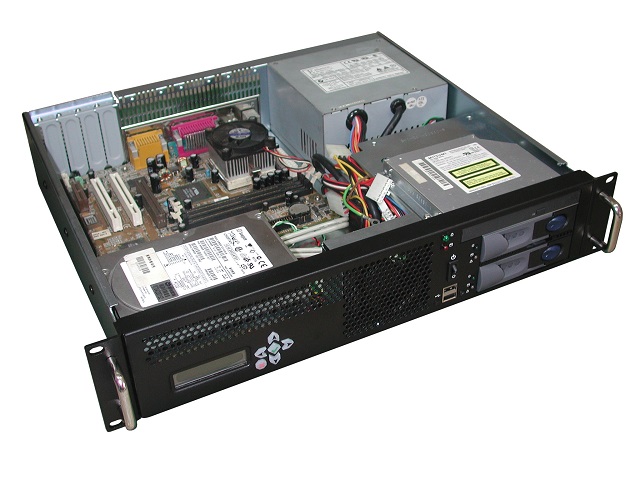

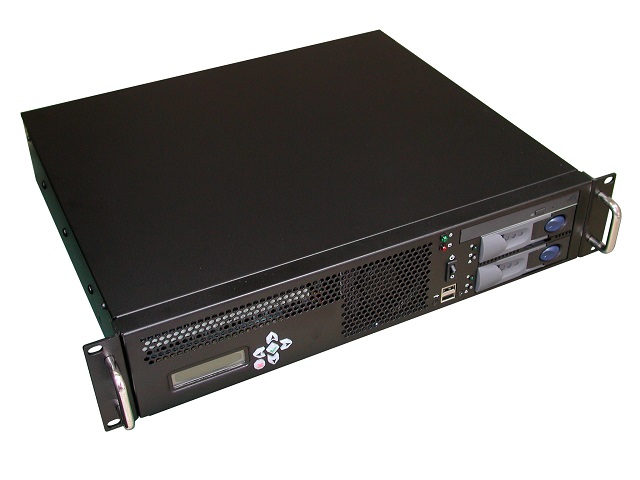

More Product Pictures
Download File

Specifications




Model: GHI-M25
Max. Board Size: Micro ATX M/B (Max. to 9.6" x 9.6")
System Board Type: Core i, Core2Duo, Core2Quad, Pentium, Dual Xeon, AMD 64, Dual Opteron, Athlon



  Product Information
Standard: EIA RS-310C 19" Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard), Beige or Custom
Drive Capacity: 1x 5.25" Slim-CD & 1x 3.5" HDD & 2x 3.5" Swappable Trays
Power Supply (Optional): PS/2 Size Single ATX P/S Max. Depth 150mm
Cooling Units: 1x (80mm = 42.5CFM ea.) Fan
Connector Port (front): 2x USB Ports
Expansion Slot: 4x Low Proflie PCI Slots
Indicators: LEDs for Power ON/Off, HDD Activity
LCM: LED Backlit STN 20*4 With Keypad
Switch: Power ON/OFF Momentary (Rocker)
Dimensions(W x H x D): 483 x 88 x 383mm (19.0" x 3.5" x 15.1")
Weight: 9.5 kgs / 21.0 lbs
Cu. ft.: 3.0
Carton Size: 59.0 x 26.0 x 55.0 (23.2" x 10.2" x 21.7")
Humidity: 5% - 95% Non-condensing
Product Applications:



  Optional Accessories
HDD Drive Accessories:
Slide Rails:
Chassis Height: 2U
