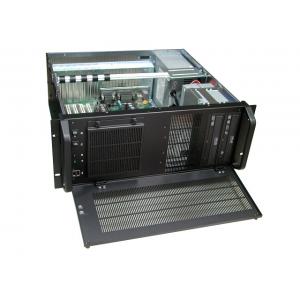

GHI-409

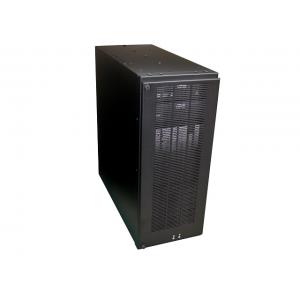

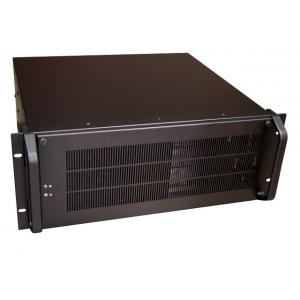

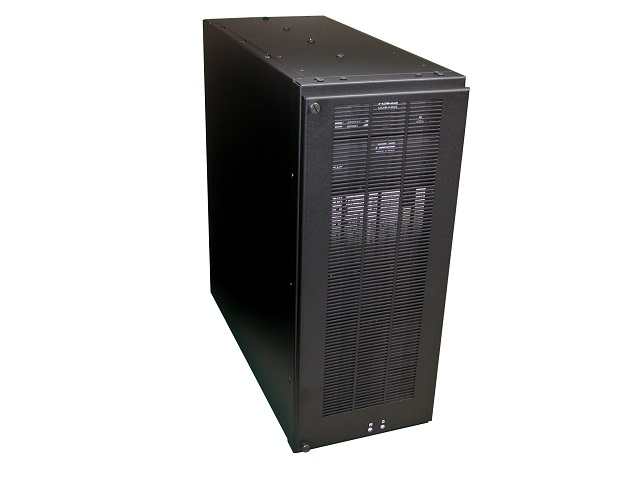

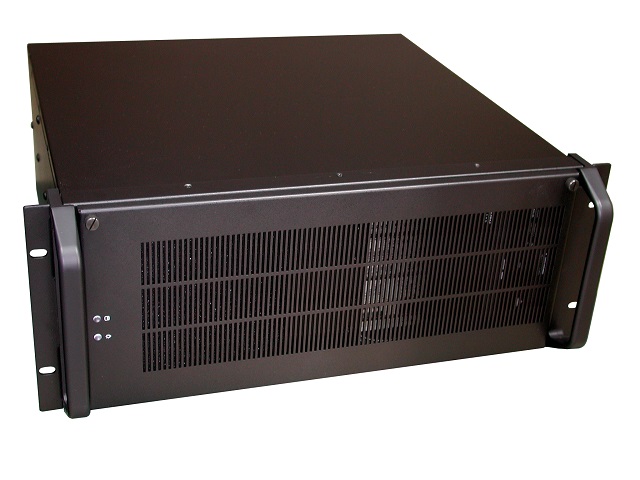

More Product Pictures
Download File

Specifications




Model: GHI-409
Max. Board Size: EATX M/B (Max. to 12" x 13") SSI EEB 3.0
System Board Type: Core i, Core2Duo, Core2Quad, Pentium, Dual Xeon, AMD 64, Dual Opteron, Athlon or Passive Backplane (SR Version)



  Product Information
Standard: EIA RS-310C 19" Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard), Beige or Custom
Drive Capacity: 2x 5.25" CD-ROM & 1x 3.5" HDD (Hidden)
Power Supply(Optional): PS/2 Size Single or Mini Redundant ATX P/S (Rear Installation) Max. Depth 170mm
Cooling: 1x (120mm =108.0CFM ea.) Fan & 2x (60mm =23.5CFM ea.) Fans (Optional)

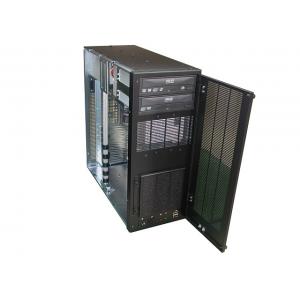

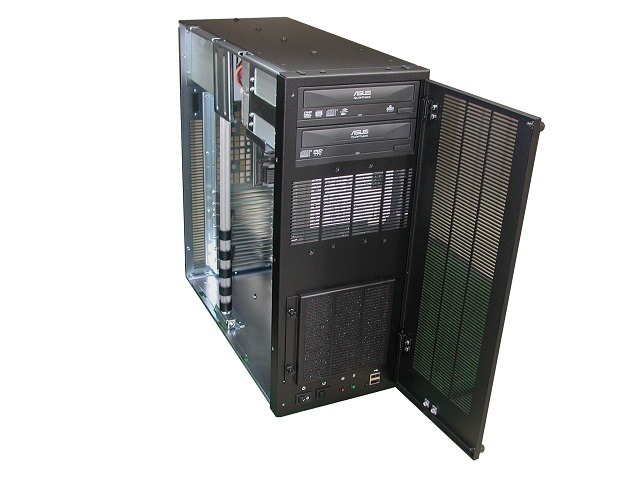

Front Door: Single Door With 2 Thumbscrews
Air Filter: Inside the Front Door (Washable)
Connector Port (front): 2x USB Ports
Indicators: LEDs for Power ON/OFF, HDD Activity

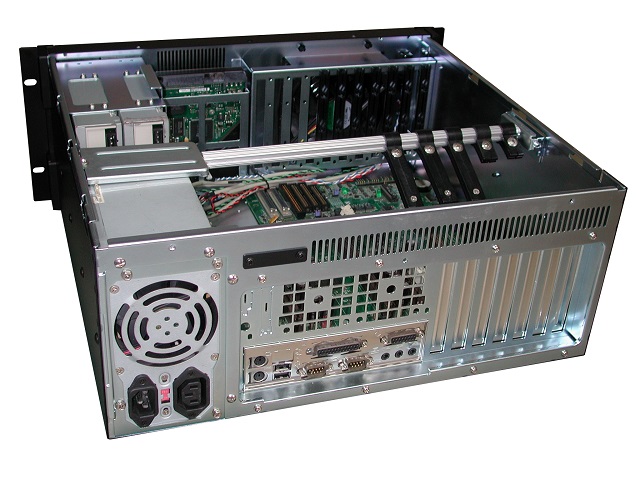

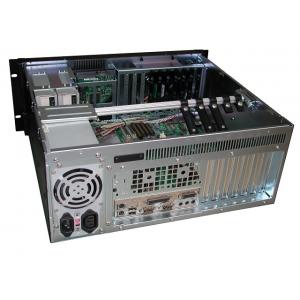

Crossbar: Flexible Hold Down Bar Designed
Switch: Power ON/OFF, System Reset
Dimensions(W x H x D): 483 x 177 x 408mm (19.0" x 7.0" x 16.1")
Weight: 14.0 kgs / 30.9lbs
Cu. ft.: 4.2
Carton Size: 59.1 x 34.0 x 59.1 (23.3" x 13.4" x 23.3")
Humidity: 5% - 95% Non-condensing
Product Applications:



  Optional Accessories
HDD Drive Accessories:
Slide Rails:
Chassis Height: 4U
