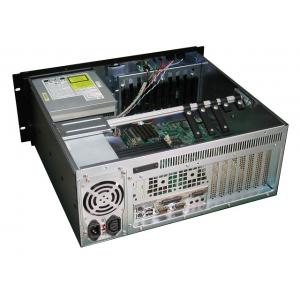

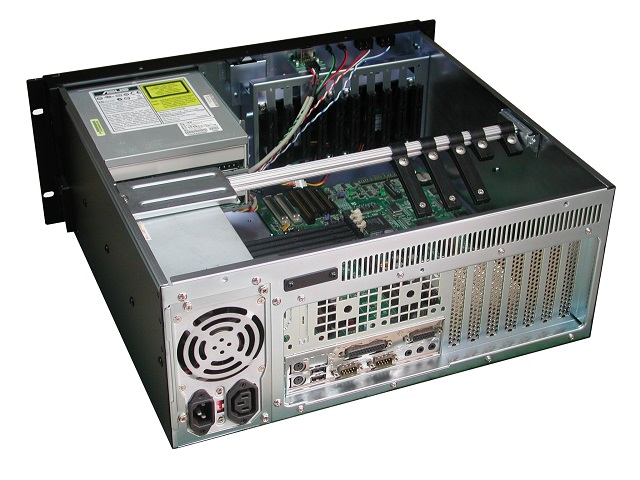

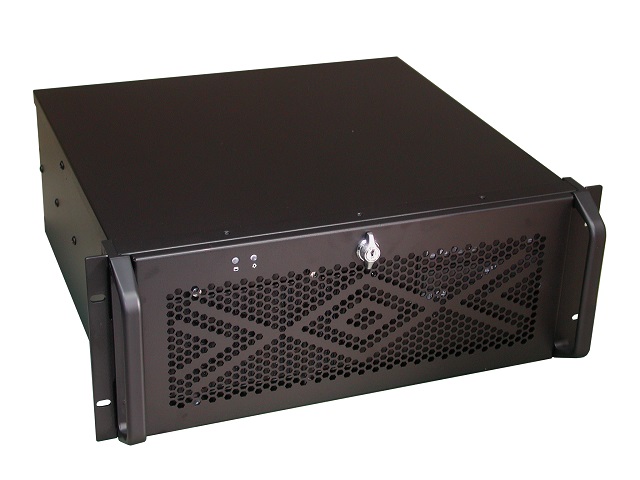

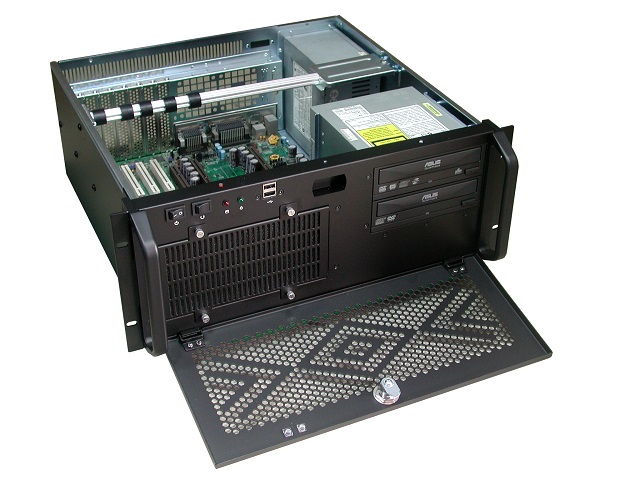

GHI-404A


More Product Pictures
Download File

Specifications




Model: GHI-404A
Max. Board Size: ATX M/B (Max. to 12" x 13") SSI EEB 3.0
System Board Type: Core i, Core2Duo, Core2Quad, Pentium, Dual Xeon, AMD 64, Dual Opteron, Athlon



  Product Information
Standard: EIA RS-310C 19" Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard), Beige or Custom
Drive Capactiy: 2x 5.25"CD-ROM & 1x 2.5" HDD (Hidden)
Power Supply(Optional): PS/2 or Mini Redundant ATX P/S (Rear Installation) Max. Depth 180mm
Cooling: 2x (90mm = 51.0CFM ea.) Fans & 2x (60mm = 23.5CFM ea.) Fans (Optional)
Front Door: Single Door With 1 Thumb Twist Keylock
Connector Port (Front): 2x USB Ports
Air Filter: Inside Front Panel (Washable)
Crossbar: Flexible Hold Down Designed
Indicators: LEDs for Power ON/OFF, HDD Activity
Switch: Power ON/OFF, System Reset
Dimensions(W x H x D): 483 x 177 x 408mm (19.0" x 7.0" x 16.1")
Weight: 14.7 kgs / 32.4 lbs
Cu. ft.: 4.2
Carton Size: 59.1 x 34.0 x 59.1 (23.3" x 13.4" x 23.3")
Humidity: 5% - 95% Non-condensing
Product Applications:



  Optional Accessories
HDD Drive Accessories:
Slide Rails:
Chassis Height: 4U
