GHI-419A

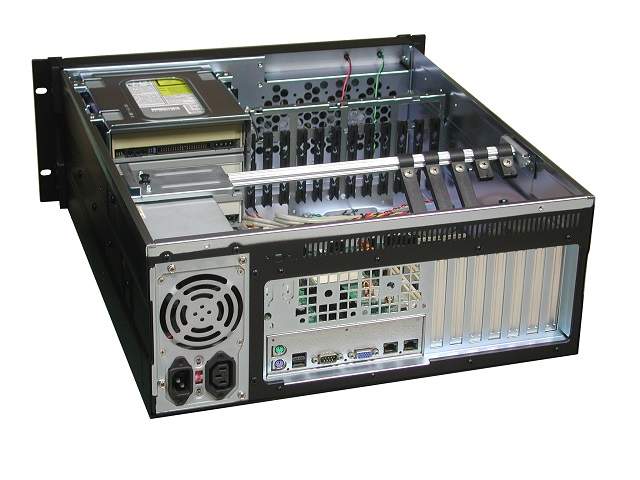

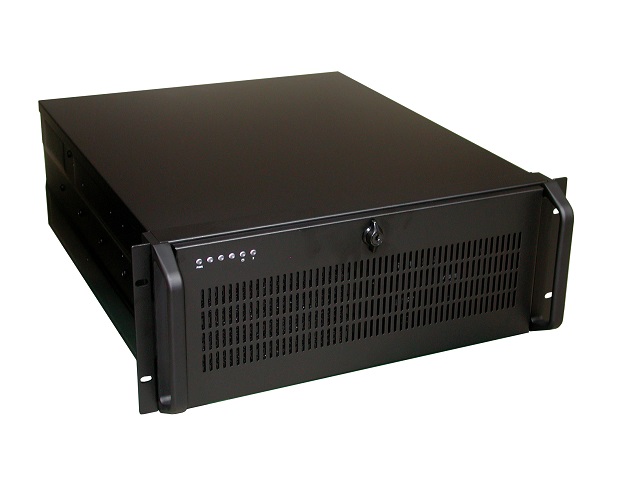

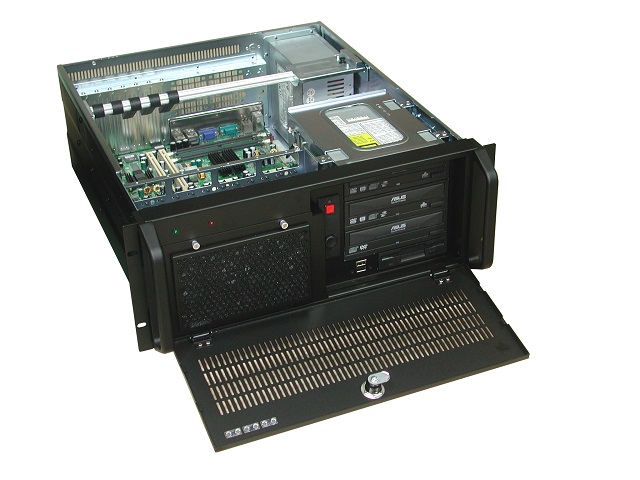

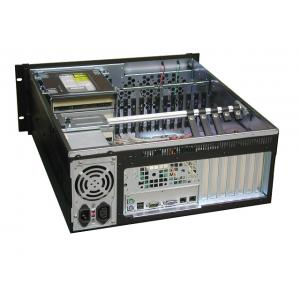

More Product Pictures
Download File

Specifications




Model: GHI-419A
Max. Board Size: EATX M/B (Max. to 12" x 13")
System Board Type: Core i, Core2Duo, Core2Quad, Pentium, Dual Xeon, AMD 64, Dual Opteron, Athlon or Passive Backplane (SR Version)



  Product Information
Standard: EIA RS-310C 19" Rackmount Standard
Construction: Heavy Duty Cold Rolled Steel
Color: Black (Standard), Beige or Custom
Drive Bays: 2x 5.25" CD-ROM & 1x 3.5" FFD & 5x 3.5" HDD & 1x 3.5"HDD (Optional)
Power Supply: PS/2 Size Single up to 700W or Mini Redundant up to 500W ATX P/S (Rear Installation) Max.Depth 300mm
Cooling: 2x (80mm = 39.5CFM ea.) Fans & 2x (60mm = 23.5CFM ea.) Fans (Optional)
Front Door: Single Door with 1 Thumb Twist Keylock
Connector Port (front): 1x PS/2 for GH-419ASR & 2x USB (Optional) Ports
Air Filter: Inside Front Panel (Washable)
Indicators: LEDs for Power ON/OFF, HDD Activity
Crossbar: Flexible Hold Down Bar Designed
Switch: Power ON/OFF Momentary (Pushbutton), System Reset
Dimensions(W x H x D): 483 x 177 x 510mm (19" x 7.0" x 20.1")
Weight: 17.4kgs / 38.4lbs
Cu. ft.: 4.9
Carton Size: 59.1 x 34.0 x 68.8 (23.3" x 13.4" x 27.1")
Humidity: 5% - 95% Non-condensing
Product Applications:



  Optional Accessories
HDD Drive Accessories:
Slide Rails:
Chassis Height: 4U
