Input / Output Ratings
Model |
Input(AC) |
Output(DC) |
|
Voltage |
Frequency |
Current |
|
Watt |
Load |
+5V |
+3.3V |
+12V |
-5V |
-12V |
5Vsb |

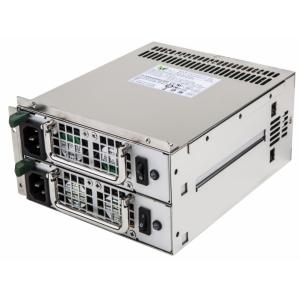

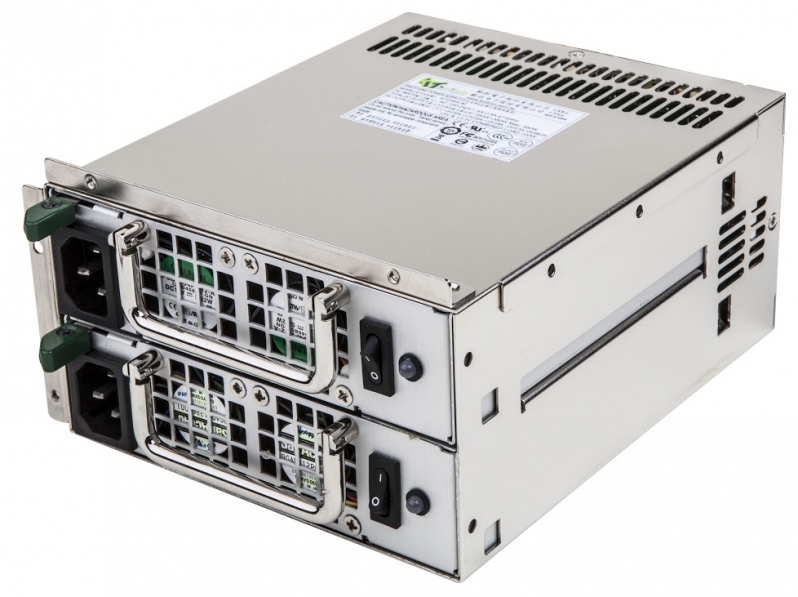

MVP-G500VP |
90-264V |
47-63Hz |
7.5-4.0A |
500W+500W |
Max. |
25A |
25A |
41A |
N/A |
0.8A |
3.5A |
|
Min. |
0A |
0A |
1A |
N/A |
0A |
0.1A |
|
Max. Comb. |
└ 170W ┘ |
480W |
N/A |
9.6W |
17.5W |
|
|
|
Features, General Spec., Agency Requirements
80+ Gold Efficiency With PMBus (OP)
Kintron PMBus SOLUTION
Electrical Specification
Regulation, Ripple & Noise |
Item / Output |
|
+5V |
+3.3V |
+12V |
-5V |
-12V |
5Vsb |
Load Regulation |
±5% |
±5% |
±5% |
±10% |
±5% |
±5% |
|
Cross Requlation |
±5% |
±5% |
±5% |
±10% |
±5% |
±5% |
|
Line Regulation |
±1% |
±1% |
±1% |
±1% |
±1% |
±1% |
|
Ripple & Noise |
50mV |
50mV |
120mV |
100mV |
120mV |
50mV |
|
|
