Input / Output Ratings

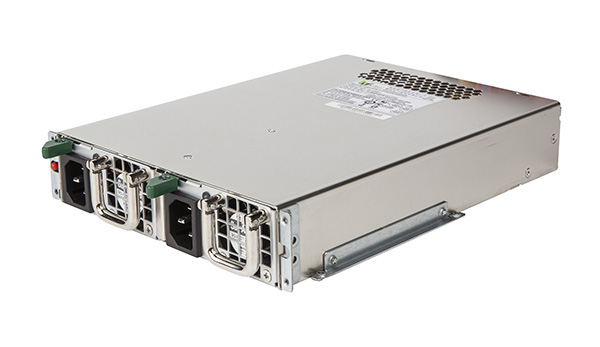

Model 　Input(AC) 　Output(DC) Voltage Frequency Current Watt Load +5V +3.3V +12V -5V -12V 5Vsb RB1-G400HP 100-240V 47-63Hz 8.5-4A 400W+400W Max. 24A 24A 33A N/A 0.8A 3.0A Min. 0A 0A 1A N/A 0A 0.1A Max. Comb. └ 160W ┘ 400W N/A 9.6W 15W   Note 1: Maximum continuous total DC output power should not exceed 400W.

Electrical Specification

Regulation, Ripple & Noise
Item / Output		+5V	+3.3V	+12V	-5V	-12V	5Vsb
Load Regulation		±5%	±5%	±5%	±10%	±5%	±5%
Cross Requlation		±5%	±5%	±5%	±10%	±5%	±5%
Line Regulation		±1%	±1%	±1%	±1%	±1%	±1%
Ripple & Noise		50mV	50mV	120mV	100mV	120mV	50mV
