Input / Output Ratings

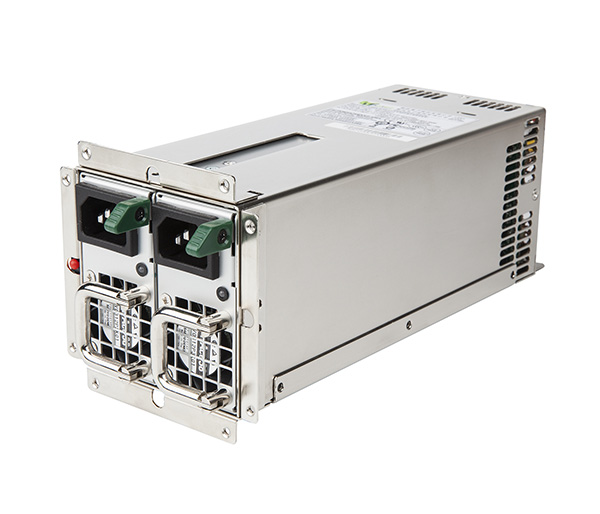

Model 　Input(AC) 　Output(DC) Voltage Frequency Current Watt Load +5V +3.3V +12V -5V -12V 5Vsb RB2-G550VP 100-240V 47-63Hz 8.5-4A 550W+550W Max. 25A 25A 45A N/A 0.8A 3.5A Min. 1A 1A 1A N/A 0A 0.1A Max. Comb. └ 170W┘ 550W N/A 9.6W 17.5W   Note 1: Maximum continuous total DC output power should not exceed 550W.

Electrical Specification

80+ Gold Efficiency With PMBus (OP)
Kintron PMBus SOLUTION

Regulation, Ripple & Noise
Item / Output		+5V	+3.3V	+12V	-5V	-12V	5Vsb
Load Regulation		±5%	±5%	±5%	±10%	±5%	±5%
Cross Requlation		±5%	±5%	±5%	±10%	±5%	±5%
Line Regulation		±1%	±1%	±1%	±1%	±1%	±1%
Ripple & Noise		50mV	50mV	120mV	100mV	120mV	50mV

Features, General Spec., Agency Requirements
