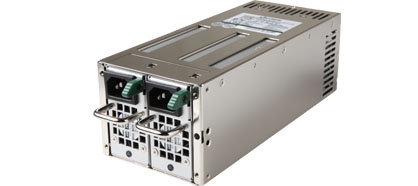

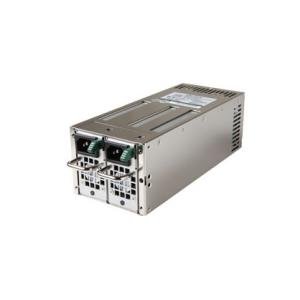

KT235V-M

Download File

Specifications


Input / Output Ratings

Model  Input(AC)  Output(DC)
Voltage Frequency Current Watt Load +5V +3.3V +12V -5V -12V 5Vsb
KT235V-M 100-240V 47-63Hz 8A-4A 350W Max. 20A 20A 28A X 0.5A 2A
Min. 1A 1A 2A 0A 0.1A
Max. Comb. └ 120W ┘ 336W X 6W 10W

Note: 1. Total DC Output should not exceed 250W (KT225V-M) / 300W (KT230V-M) / 350W (KT235V-M)
           2. Noise bandwidth is from DC to 20MHz

Electrical Specification
Regulation, Ripple & Noise
Item / Output +5V +3.3V +12V -5V -12V 5Vsb
Load Regulation ±5% ±5% ±5% ±10% ±5% ±5%
Cross Regulation ±5% ±5% ±5% ±10% ±5% ±5%
Line Regulation ±1% ±1% ±1% ±1% ±1% ±1%
Ripple & Noise 50mV 50mV 120mV 100mV 120mV 50mV
Note: Single rail for +12V output relates to +12V1 only.
