Input / Output Ratings
| Model |
Input(AC) |
Output(DC) |
 |
Voltage |
Frequency |
Current |
|
Watt |
Load |
+5V |
+3.3V |
+12V |
-5V |
-12V |
5Vsb |

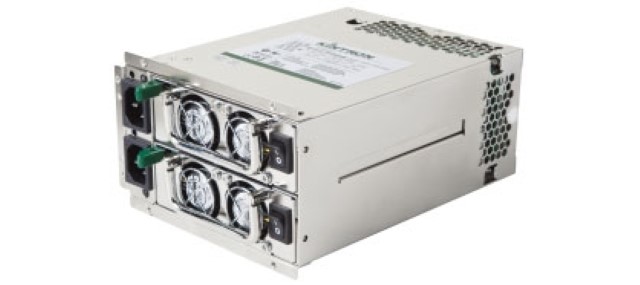

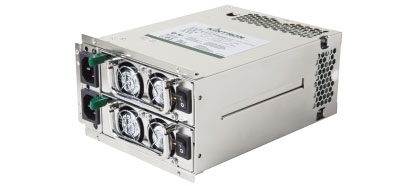

| KT-P550FVS |
100-240V |
47-63Hz |
8A-4A |
550W |
Max. |
30A |
24A |
41A |
0.5A |
1A |
2A |
 |
| Min. |
0A |
0A |
0A |
0A |
0A |
0.1A |
|
| Max. Comb. |
└ 180W ┘ |
492W |
2.5W |
12W |
10W |
|
|
|
Note：1. Total DC Output should not exceed 550W (KT-P550FVS)
2.Noise bandwidth is from DC to 20MHz
Electrical Specification
| Regulation, Ripple & Noise |
| Item / Output |
|
+5V |
+3.3V |
+12V |
-5V |
-12V |
5Vsb |
| Load Regulation |
±5% |
±5% |
±5% |
±10% |
±5% |
±5% |
|
| Cross Regulation |
±5% |
±5% |
±5% |
±10% |
±5% |
±5% |
|
| Line Regulation |
±1% |
±1% |
±1% |
±1% |
±1% |
±1% |
|
| Ripple & Noise |
50mV |
50mV |
120mV |
100mV |
120mV |
50mV |
|
Note：Single rail for +12V output relates to +12V1 only |
