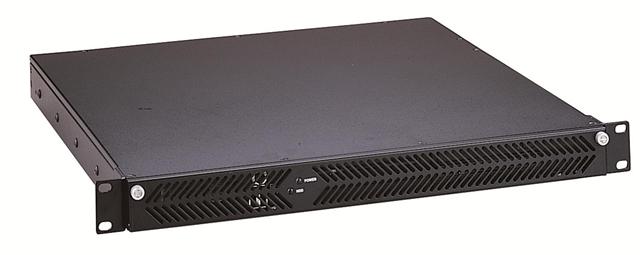

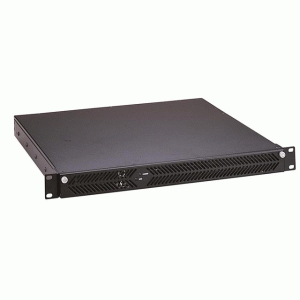

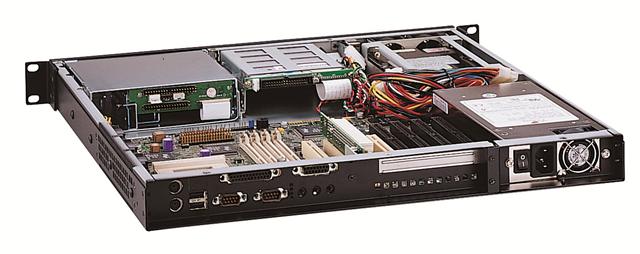

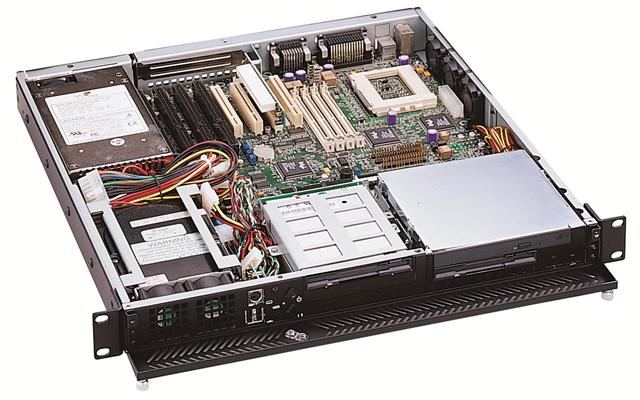

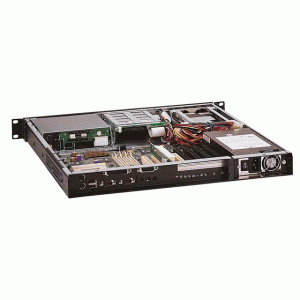

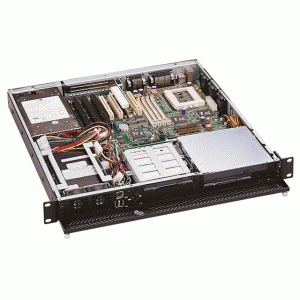

GHI-110


More Product Pictures

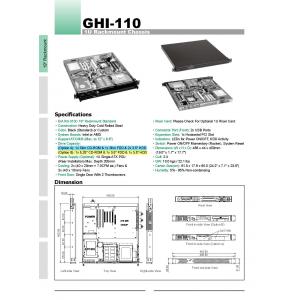

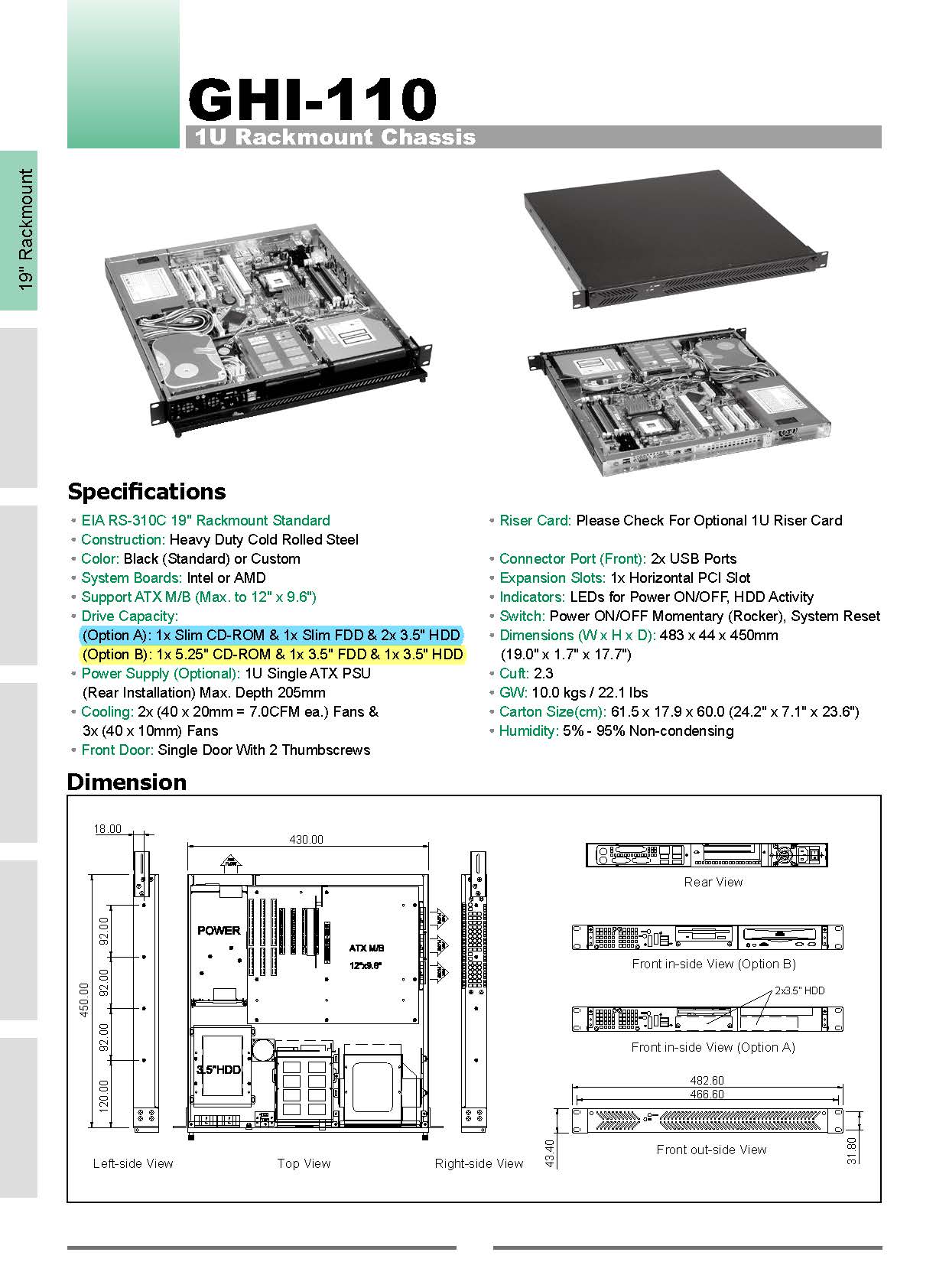

Download File

Specifications

Model: GHI-110
Max. Board Size: ATX (12" x 9.6")
System Board Type: Core i, Core2Duo, Core2Quad, Pentium, Dual Xeon, AMD 64, Dual Opteron, Athlon

  Product Information
Standard: EIA RS-310C 19" Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard), Beige or Custom
Drive Bays: (Option A): 1x Slim CD-ROM, 3.5"HDD & 1x Slim FDD, 3.5"HDD & 1x 3.5"HDD (Option B): 1x5.25" & 1x3.5"FDD & 1x3.5"HDD
Power Supply: 1U Single up to 350W ATX P/S(Rear Installation) Max. Depth 205mm
Cooling Units: 2x (40 x 20mm = 7CFM ea.) & 3x (40 x 10mm) Fans
Expansion Slot: 1x Horizontal PCI Slot
Connector Port (front): 2x USB Ports
Indicators:
Buttons: Power ON/OFF Momentary (Rocker), System Reset
Crossbar:
Thermal Card: NA
Front Door(s): Single Door With 2 Thumbscrews
Air Filter: None
Dimensions(W x H x D): 483 x 44 x 450mm (19" x 1.7" x 17.7")
Weight: 10.0kgs / 22.1lbs
Cu. ft.:
Carton Size: 61.5 x 17.9 x 60 (24.2" x 7.1" x 23.6")
Humidity: 5% - 95% Non-condensing
Product Applications:

  Optional Accessories
HDD Drive Accessories:
Slide Rails:
Chassis Height: 1U
