| Board: |
Supports Mini-ITX M/B (Max. to 6.7" x 6.7") |
| Drive Capacity: |
1x 2.5"HDD |
| Power Supply (Optional): |
1U Flex ATX 200W Max. Depth 150mm |
| Cooling: |
2x (60 mm = 15 CFM ea.) Fans |
| Expansion Slots: |
1x Slot |
| Connector Port (Front): |
2x USB Ports (Optional) |
| Front Door: |
|
| Air Filter: |
|
| Thermal Management Card: |
|

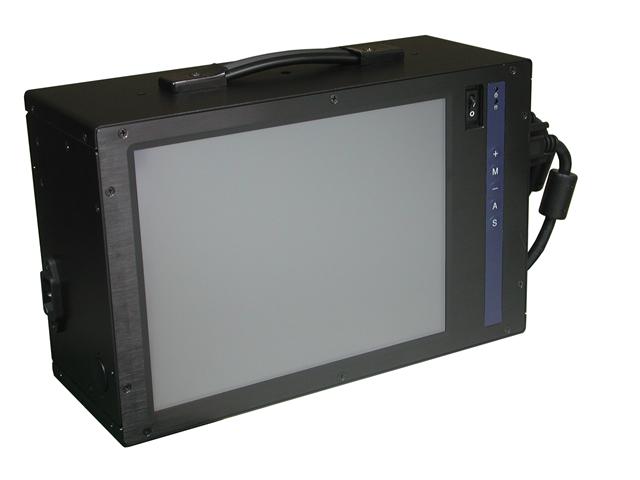

| LCD Size: |
10.4" TFT With 800x600 Resolution With Touch Screen |
| play Color: |
Native 262K Colors |
| Luminance: |
230 cd/m2 |
| Indicators: |
LEDs for Power ON/OFF, HDD Activity |
| Hold Down Bar: |
|
| Switch: |
Power ON/OFF, Menu |
| Dimensions: |
306 x 196 x 117mm (12" x 7.7" x 4.6") |
| Cuft: |
1.3 |
| GW: |
6.1 kgs / 13.5 lbs |
| Carton Size: |
43 x 25 x 33.7 (16.9" x 9.8" x 13.3") |
| Humidity: |
5% - 95% Non-condensing |
GHB-WS1
