| Board: |
Micro ATX (Max. to 9.6" x9.6") |
| Drive Capacity: |
1x Slim ODD & 2x 2.5"HDD/SSD |
| Power Supply (Optional): |
1U Flex-ATX PSU |
| Cooling: |
2x(60mm = 23.5CFM ea.) Fans |
| Expansion Slots: |
* GHB-B01: with 3 Horizontal Full Height Slots Back Panel.
* GHB-B01V: with 4 Vertical Low-Profile Slots Back Panel.
|
| Connector Port (Front): |
2x USB Ports |
| Front Door: |
N/A |
| Air Filter: |
N/A |
| Thermal Management Card: |
N/A |
| Indicators: |
LEDs for Power ON/OFF, HDD Activity |
| Hold Down Bar: |
N/A |
| Switch: |
Power ON/OFF, System Reset |
| Dimensions: |
350 x 89 x 337mm (13.8" x 3.5" x 13.3") |
| Cuft: |
1.6 |
| GW: |
5.8 kgs / 12.8 lbs |
| Carton Size: |
46 x 22 x 45 (18.1" x 8.7" x 17.7") |
| Humidity: |
5% - 95% Non-condensing |

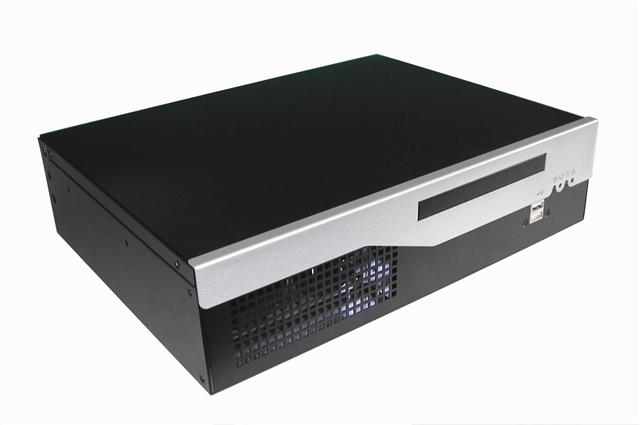

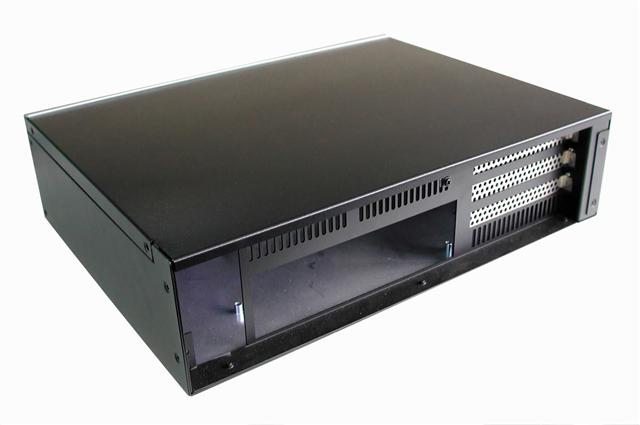

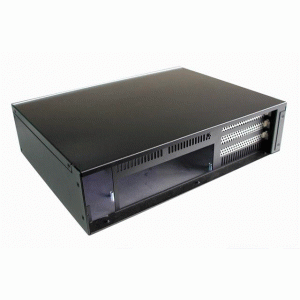

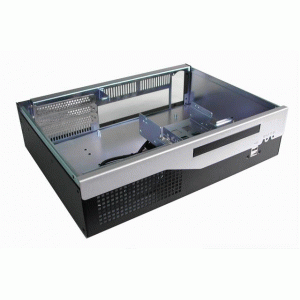

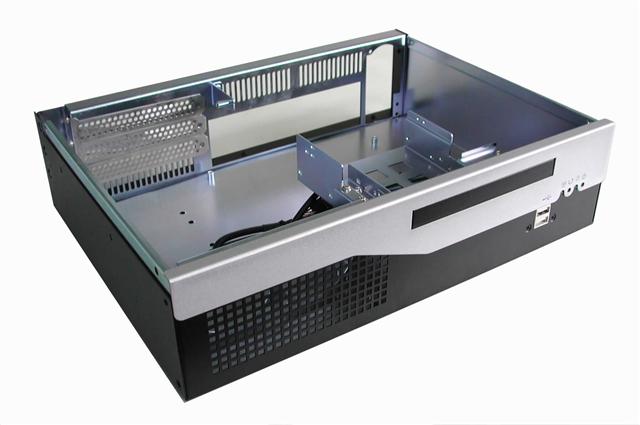

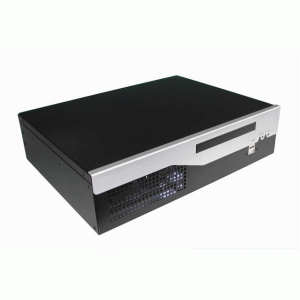

GHB-B01
