| Board: |

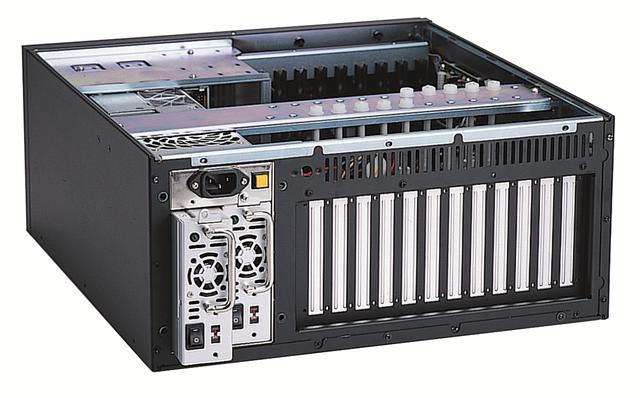

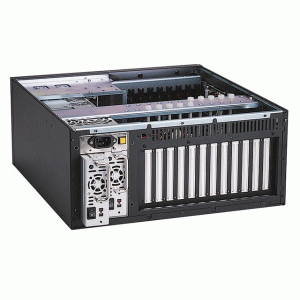

Support Flex ATX M/B and Micro ATX M/B(GHB-120); Support 10/12-slot Passive Backplane(9 Full Length Card)(GHB-120SR) |
| Drive Capacity: |
2x 5.25" & 2x 3.5" & 1x 3.5"HDD |

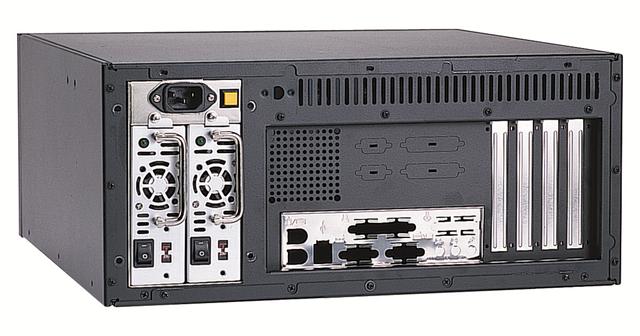

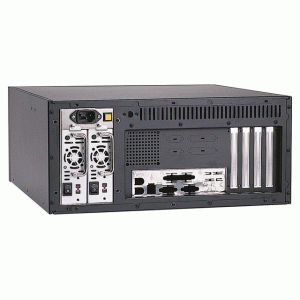

| Power Supply (Optional): |
PS/2 Size Single or Redundant Power Supply (Rear Installation) Max. Depth 190mm |
| Cooling: |
1x (120mm = 90CFM ea.) Fan |
| Expansion Slots: |
4x Slots (ATX version); 12x Slots (SR version) |
| Connector Port (Front): |
2x USB Ports (Optional) |
| Front Door: |
Single Door With 2 Thumbscrews |
| Air Filter: |
Inside Front Panel (Washable) |
| Thermal Management Card: |
GHA-CO01 |

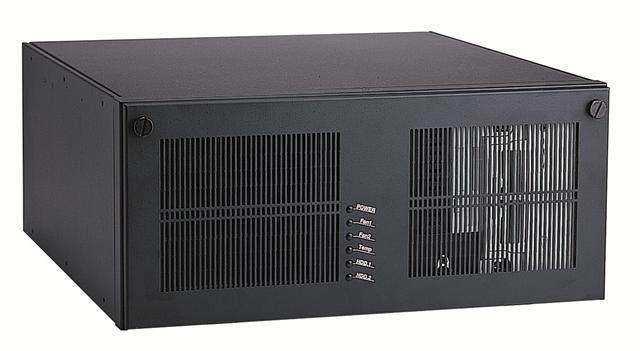

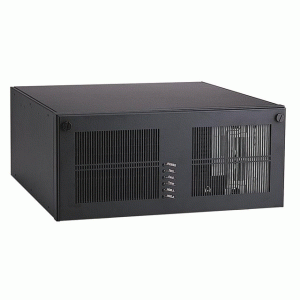

| Indicators: |
LEDs for Power ON/OFF, HDD Activity, Fan, Temperature |
| Hold Down Bar: |
Flexible Hold Down Bar |
| Switch: |
Power ON/OFF, System Reset, Buzzer Reset |
| Dimensions: |
400x177x420mm(15.7"x7"x16.5") |
| Cuft: |
3.6 |
| GW: |
15 kgs / 33.1 lbs |
| Carton Size: |
56.1 x 33 x 54.8(22.1" x 13" x 21.6") |
| Humidity: |
5% - 95% Non-condensing |

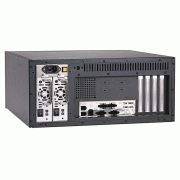

GHB-120
