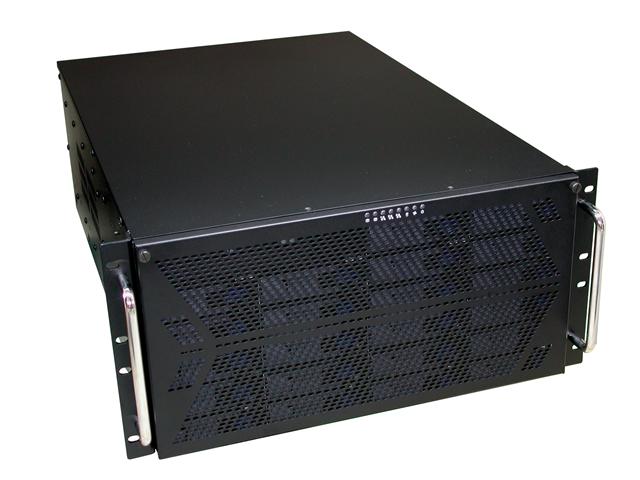

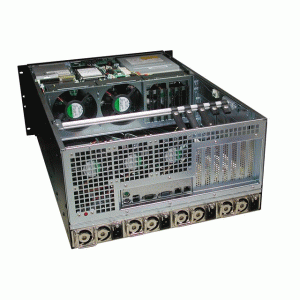

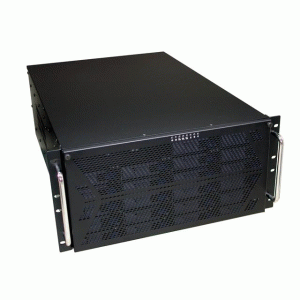

GHI-591


More Product Pictures
Download File

Specifications

Model: GHI-591
Max. Board Size: 13"x16"
System Board Type:



  Product Information
Standard: EIA RS-310C 19" Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard), Beige or Custom

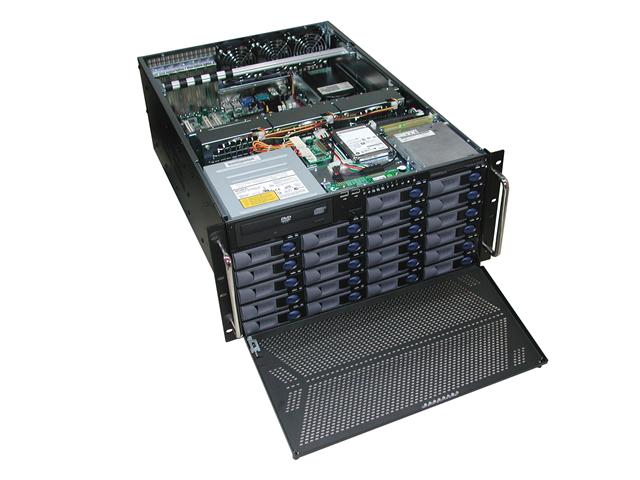

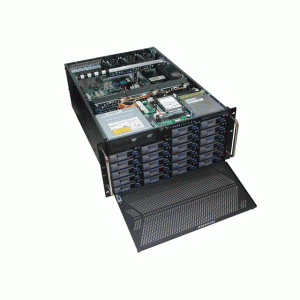

Drive Bays: 1x 5.25" , 1x Slim FDD & 22x 3.5" Hot Swappable Trays & 1x 2.5" HDD & 3x 3.5" HDD (Optional)

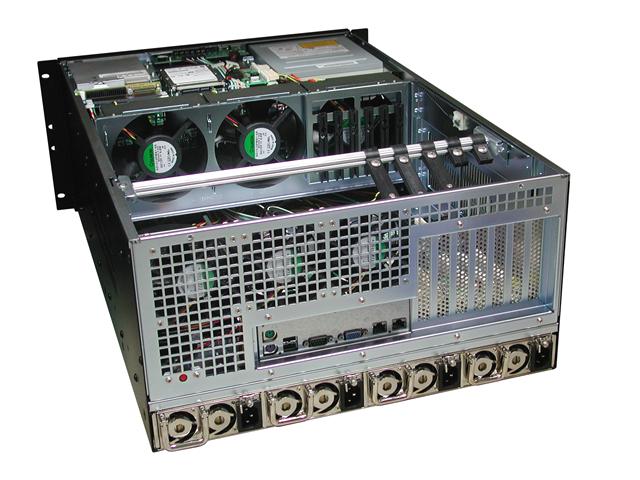

Power Supply: 1U Redundant up to 1650W ATX P/S (Rear Installation) Max. Depth 300mm
Cooling Units: 3x (120mm = 90CFM ea.) Fans & 3x (80mm= 42.5CFM ea.) Fans
Expansion Slot: 7 Slots
Connector Port (front): 2x USB Ports
Indicators:
Buttons: Power ON/OFF Momentary (Dimple), System Reset, Buzzer Reset
Crossbar:
Thermal Card:
Front Door(s): Single Door With 2 Thumbscrews (Removable)
Air Filter:
Dimensions(W x H x D): 483 x 222 x 650mm (19" x 8.7" x 25.6")
Weight: 33.5 kgs / 73.9 lbs
Cu. ft.: 6.8
Carton Size: 85.5 x 37 x 61 (33.7" x 14.6" x 24")
Humidity: 5% - 95% Non-condensing
Product Applications:



  Optional Accessories
HDD Drive Accessories:
Slide Rails:
Chassis Height: 5U
