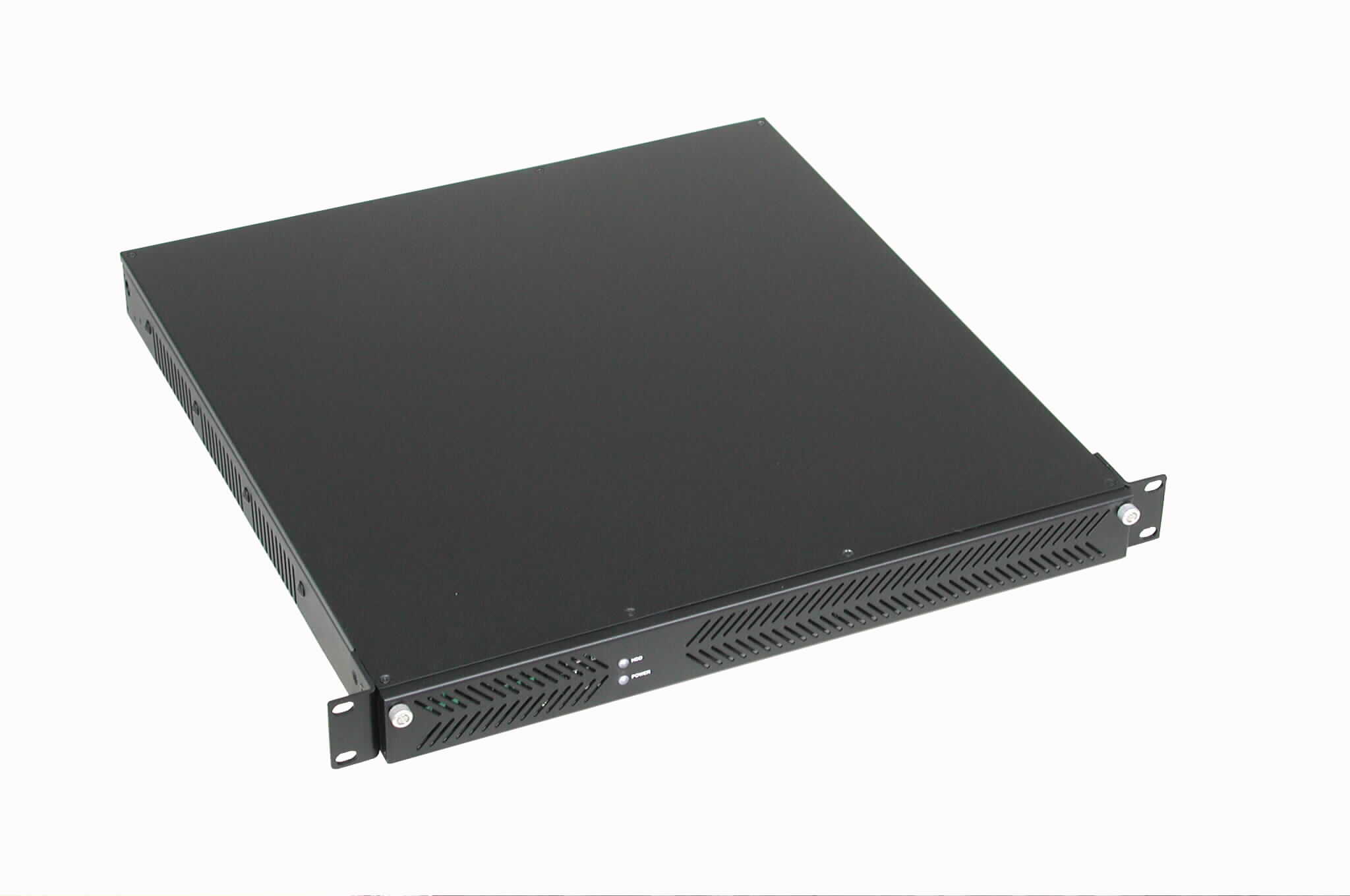

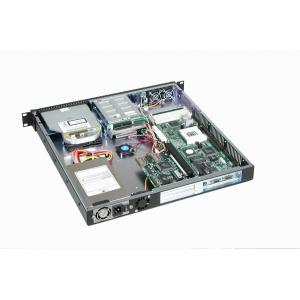

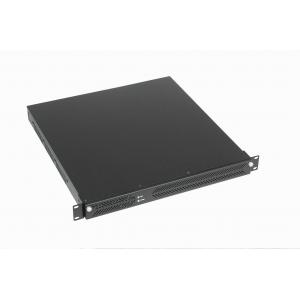

More Product Pictures
Download File
Model: GHI-101
Max. Board Size: GHP-G1UG1, GHP-AD3S4
System Board Type: Passive Backplane


  Product Information
Standard: EIA RS-310C 19" Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard) or Custom
Drive Bays:

Option A: 1x Slim ODD + Slim FDD + 2x 3.5"HDD + 1x 2.5"HDD/SSD(Optional)

Option B: 1x 5.25" Open bay + 1x3.5"Open bay + 1x 2.5"HDD/SSD(Optional)

Power Supply: 1U single ATX PSU with max. depth 205mm
Cooling Units: 3x (40mm x 20mm) fans
Expansion Slot: 2x PCI + PICMG 1.0
Connector Port (front): 2x USB + 1x PS2 ports
Indicators: LEDs for Power On/Off, HDD Activity
Buttons: Power ON/OFF Momentary (Rocker), System Reset
Crossbar: N/A
Thermal Card: N/A
Front Door(s): Single Door
Air Filter: None
Dimensions(W x H x D): 483 x 44 x 450mm (19" x 1.7" x 17.7")
Weight: 10 kgs / 22.1 Lbs. (GW)
Cu. ft.: 2.3
Carton Size: 61.5 x 17.9 x 60cm (24.2" x 7" x 23.6")
Humidity: 5% - 95% Non-condensing
Product Applications:


  Optional Accessories
HDD Drive Accessories: GHK-25A, GHK-25B
Slide Rails: GHA-SL20-1U, GHA-SL24-1U
Chassis Height:
