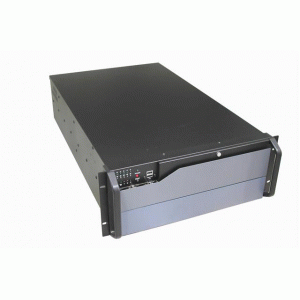

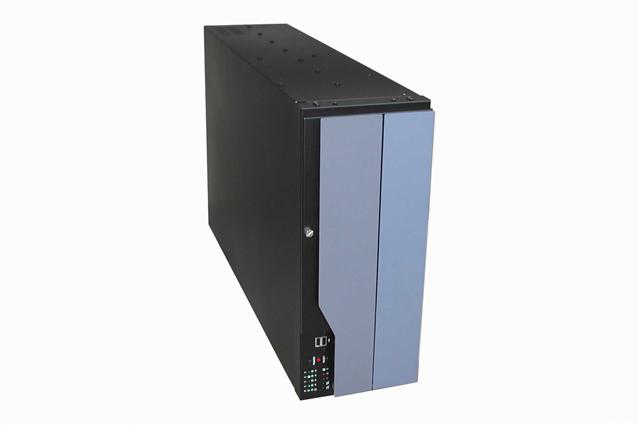

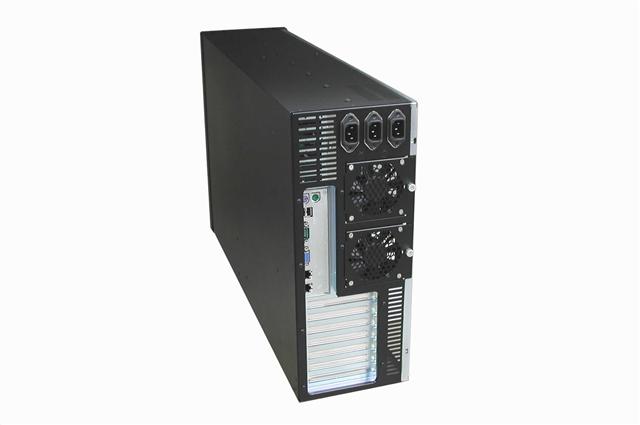

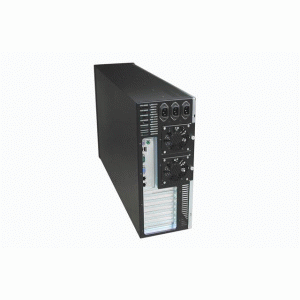

| Model: |
GHI-460 |
| Max. Board Size: |
EATX (12" x 13") |
| System Board Type: |
Core i, Core2Duo, Core2Quad, Pentium, Dual Xeon, AMD 64, Dual Opteron, Athlon |
| Standard: |
EIA RS-310C 19" Rackmount Standard |
| Construction: |
Heavy Duty Cold Rolled Electroplated Steel |
| Color: |
Black (Standard), Beige or Custom |
| Drive Bays: |
3x 5.25" CD-ROM & 5x 3.5"HDD |
| Power Supply: |
N+1Redundant up to 950W ATX P/S (Front Installation) Max. Depth 300mm |
| Cooling Units: |
3x (92mm = 51CFM ea.) Hot Swapple Fans & 2x (80mm = 42.5CFM ea.) Fans |
| Expansion Slot: |
7 Slots |
| Connector Port (front): |
2x USB Ports |
| Indicators: |
|
| Buttons: |
Power ON/OFF Momentary(Rocker), System Reset,Buzzer Reset |
| Crossbar: |
|
| Thermal Card: |
|
| Front Door(s): |
Single Door With 1 Thumbscrew |
| Air Filter: |
|
| Dimensions(W x H x D): |
483 x 177 x 710mm (19" x 7" x 28") |
| Weight: |
23.2 kgs / 51.2 lbs |
| Cu. ft.: |
6.1 |
| Carton Size: |
56 x 34.5 x 89 ( 22.1" x 13.6" x 35" ) |
| Humidity: |
5% - 95% Non-condensing |
| Product Applications: |
|
| HDD Drive Accessories: |
|
| Slide Rails: |
|
| Chassis Height: |
4U |
|
|
