| Model: |
GHI-440 |
| Max. Board Size: |
EATX (12" x 13") SSI EEB 3.0 |
| System Board Type: |
Intel or AMD |
| Standard: |
EIA RS-310C 19" Rackmount Standard |
| Construction: |
Heavy Duty Cold Rolled Electroplated Steel |
| Color: |
Black (Standard) or Custom |

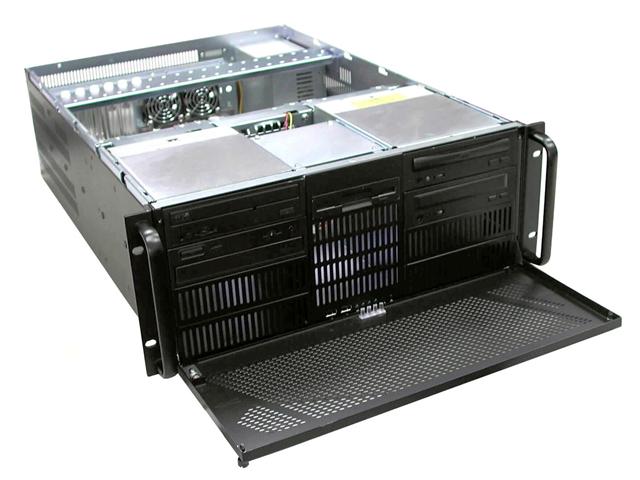

| Drive Bays: |
8x ODD/5.25" & 4x 3.5"HDD & 1x 3.5"FDD or 1x ODD/5.25" & 15x 3.5"HDD & 1x 3.5"FDD |
| Power Supply: |
PS2 Size Single or Mini Redundant ATX PSU (Rear Installation) Max. Depth 300mm |
| Cooling Units: |
3x (120mm = 90CFM ea.) Fans & 2x (60mm = 23.5CFM ea.)(Optional) Fans |
| Expansion Slot: |
7 slots |
| Connector Port (front): |
2x USB Ports |
| Indicators: |
LEDs for Power ON/OFF, HDD Activity, 2x LAN Status |
| Buttons: |
Power ON/OFF Momentary (Dimple), System Reset |
| Crossbar: |
Flexible HBA Hold-Down Bar |
| Thermal Card: |
|

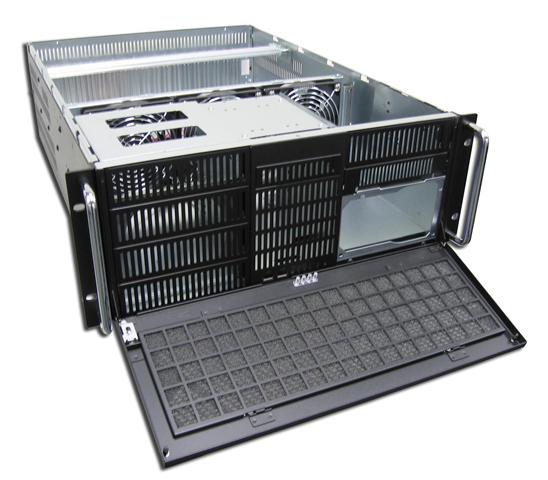

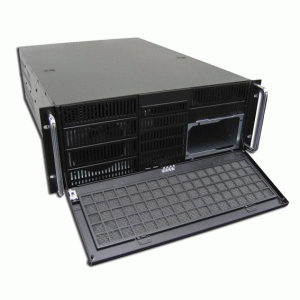

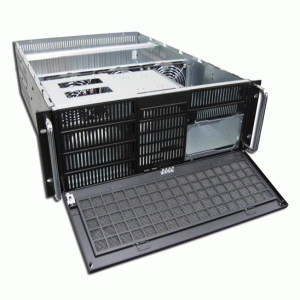

| Front Door(s): |
Single Door with 2 Thumbscrews (Removable) |
| Air Filter: |
Inside Front Door (Washable) |
| Dimensions(W x H x D): |
483x177x624mm(19" x 7.0" x 24.5") |
| Weight: |
19.5 kgs / 43.0 lbs |
| Cu. ft.: |
5.5 |
| Carton Size: |
80.0 x 33.1 x 59.0(31.5" x 13.0" x 23.2") |
| Humidity: |
5% - 95% Non-condensing |
| Product Applications: |
|
| HDD Drive Accessories: |
GHA-H300; GHA-FM/H01; GHA-FM/H03, GHA-FM/H04, GHA-FM/H05,GHA-FM06, GHA-FM07, GHA-F10, GHA-F11, GHA-F12, GHA-H01, GHK-425 or Similar; GHK-431, GHK-541, or Similar. |
| Slide Rails: |
GHA-SL20, GHA-SL26 |
| Chassis Height: |
4U |
|
|
