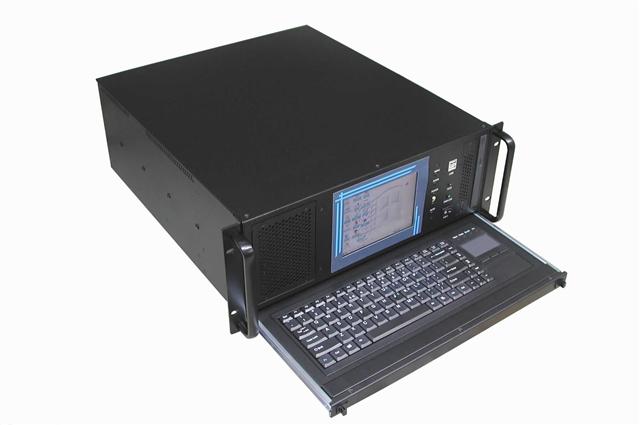

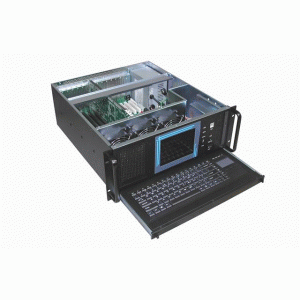

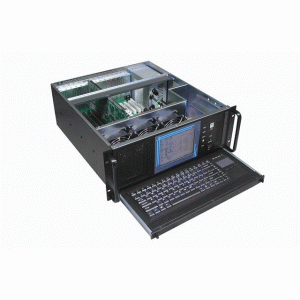

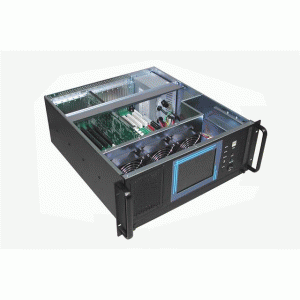

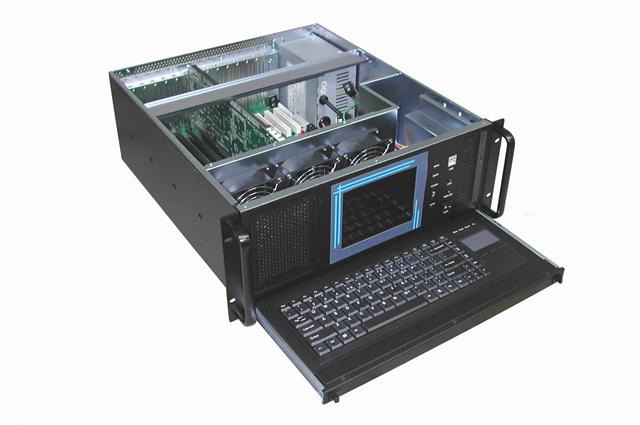

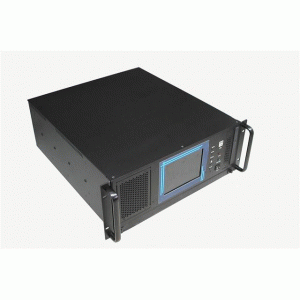

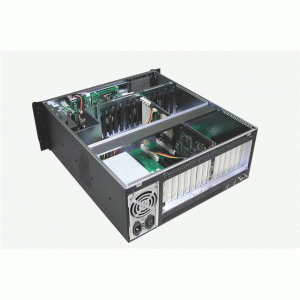

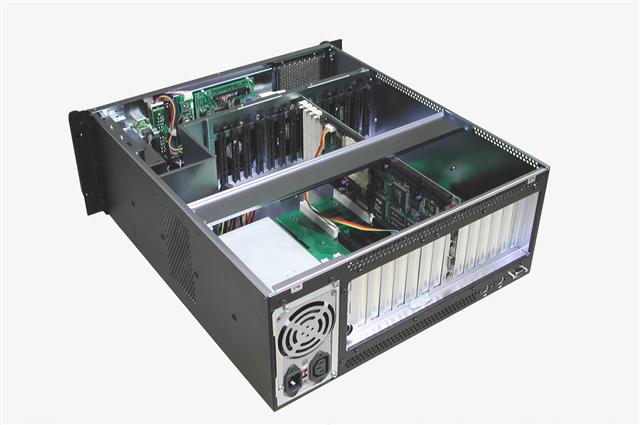

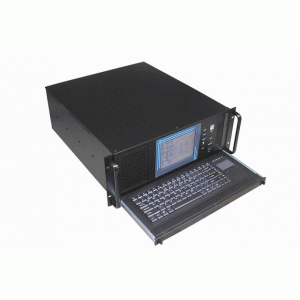

| Model: |
GHI-415 |
| Max. Board Size: |
EATX (12" x 13") |
| System Board Type: |
Core i, Core2Duo, Core2Quad, Pentium, Dual Xeon, AMD 64, Dual Opteron, Athlon |
| Standard: |
EIA RS-310C 19" Rackmount Standard |
| Construction: |
Heavy Duty Cold Rolled Electroplated Steel |
| Color: |
Black (Standard), Beige or Custom |
| Drive Bays: |
1x 5.25" Slim CD-ROM & 1x 3.5" HDD |
| Power Supply: |
PS/2 Size Single up to 700W or Mini Redundant up to 500W ATX P/S (Rear Installation) Max. Depth 220mmm |
| Cooling Units: |
3x (92 mm = 51.0CFM ea.) Fans & 2x(6cm) Fans(23.5CFM ea.)(Optional for ATX M/B) |
| Expansion Slot: |
7 slots |
| Connector Port (front): |
2x USB Ports |
| Indicators: |
|
| Buttons: |
Power ON/OFF, Brightness, Contrast, Menu |
| Crossbar: |
|
| Thermal Card: |
|
| Front Door(s): |
|
| Air Filter: |
|
| Dimensions(W x H x D): |
483 x 177 x 490mm (19.0" x7.0" x 19.3") |
| Weight: |
20.0 kgs / 44.1 lbs |
| Cu. ft.: |
4.7 |
| Carton Size: |
59.1 x 34.0 x 66.8 (23.3" x 13.4" x 26.3") |
| Humidity: |
5% - 95% Non-condensing |
| Product Applications: |
|
| HDD Drive Accessories: |
|
| Slide Rails: |
|
| Chassis Height: |
4U |
|
|
